Bringing gentle and reliable illumination to your examination.
This examination light combines a design made to put the patient at ease with “LEDs suited for Medical” that ensure both accurate color visibility and distinguishability. Three types are available: the mobile stand type, the ceiling-mounted type, and the wall-mounted type.
Recommended UsesOperating room/Emergency Room/Delivery Room/ICU/Sick ward

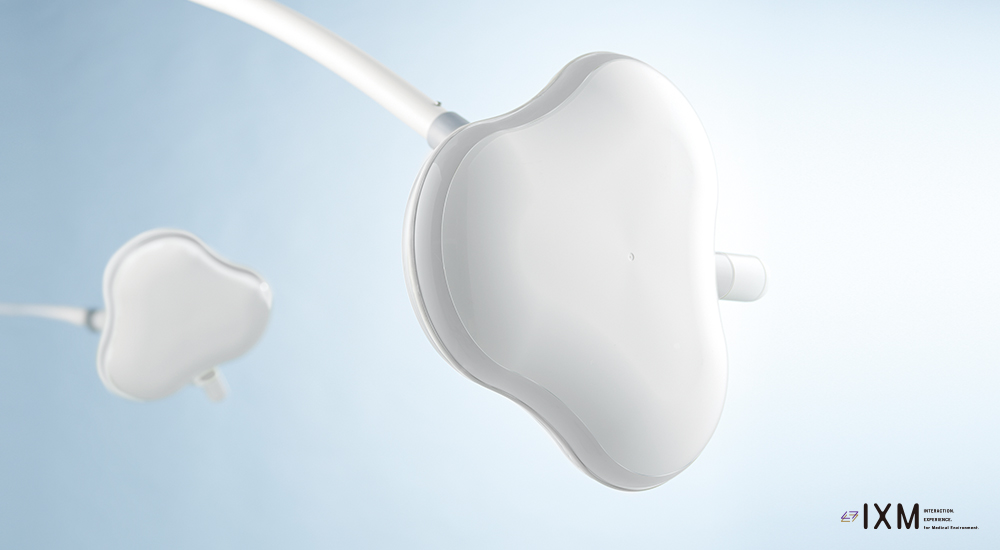

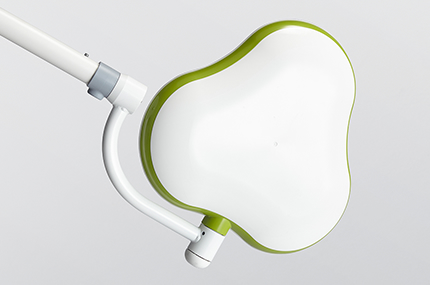

Cute and compact
This examination LED light has a natural and soft design
that easily fits into your environment and puts patients at ease.
“Ultra-high color rendering LEDs” achieve reliable visibility and distinguishability
We used “Ultra-high color rendering LEDs” to achieve a high index of 95 for the R9 value. This corresponds to red(blood) in the special color rendering index (Ri), an index that includes colors close to the human body. This makes the colors of blood, organs, and tissue in the operative field more visible and distinguishable, helping improve the precision of operations.
Light that is gentle on your eyes with reduced risk of blue light
Doctors who continue to look at an operation site under an abnormally bright light experience tired eyes due to blue light. “LEDs suited for Medical”reduce the blue light risk and achieve a spectrum that does not strain the eyes.
Low-glare light that makes the operation site visible and improves operation efficiency
The unique optical design prevents glare when illuminated on the operation site. This significantly reduces eye strain and discomfort for doctors, who must continue to look at the operation site over a long period of time.

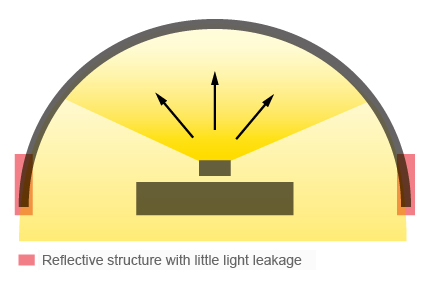

Light unit which reduces brightness
The light unit is designed to have a structure that prevents the
LEDs from interfering with your work.
This structure prevents
the physician and support staff from feeling uncomfortable
brightness.

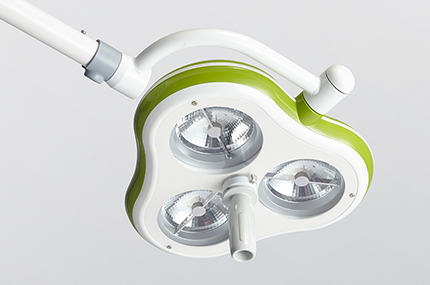

Sterilizable handle
The sterilizable handle for the 03 series is detachable and replaceable.
Specifications
| Product name |  mobile stand typeCS01GY |
 mobile stand typeCS03GY |
 wall-mounted typeCW03GY |
 ceiling-mounted typeCV03GY |
 ceiling-mounted typeCV0303GY |
|---|---|---|---|---|---|
| Product type | > CS01GY/CS03GYMobile stand | > CW03GYWall-mounted | > CV03GY/CV0303GYCeiling-mounted | ||
| LED technology | > CS01GY/CS03GY/CW03GY/CV03GY/CV0303GYUltra-high color rendering LEDs | ||||
| Light head diameter | > CS01GYApprox. φ210mm | > CS03GY/CW03GY/CV03GY/CV0303GYApprox. φ360mm | |||
| LED service life | > CS01GY/CS03GY/CW03GY/CV03GY/CV0303GY40,000 hours (up to 70% light intensity) | ||||
| Rated input voltage | > CS01GY/CS03GY/CW03GY/CV03GY/CV0303GYAC100 – 240V 50/60Hz | ||||
| Power consumption | > CS01GY20 – 30VA | > CS03GY/CW03GY/CV03GY/CV0303GY35 – 45VA | |||
| Central illuminance (at 80cm) | > CS01GYApprox. 30,000Lux | > CS03GY/CW03GY/CV03GY/CV0303GYApprox. 75,000Lux | |||
| Irradiance (at 80cm) | > CS01GYApprox. 110W/㎡ | > CS03GY/CW03GY/CV03GY/CV0303GYApporx. 280W/㎡ | |||
| Color temperature (K) | > CS01GY/CS03GY/CW03GY/CV03GY/CV0303GYApprox. 4250K | ||||
| Color rendering index | > CS01GY/CS03GY/CW03GY/CV03GY/CV0303GYRa: 99 R9: 95 | ||||
| Light field diameter/Brightness adjustment | > CS01GYApprox. φ160mm | > CS03GY/CW03GY/CV03GY/CV0303GYApprox. φ160mm/Dimmer switch (30～100%) | |||
| Net weight | > CS01GYApprox. 4Kgs. | > CS03GYApprox. 21Kgs. | > CW03GYApprox. 15Kgs. | > CV03GYApprox. 21Kgs. | > CV0303GYApprox. 45Kgs. |
*1: It is not guaranteed value because it depends on the use status and condions.
* When the initial illuminance is lower than 70%. It is the life of the LED used and not the life of the product.
* Please note in advance that partial changes in the design and specifications may be made without prior notice for reason such as improvements.
